Science Advances 1, e1500222 (2015)
Graphene research has prospered impressively in the past few years, and promising applications such as highfrequency transistors, magnetic field sensors, and flexible optoelectronics are just waiting for a scalable and costefficient fabrication technology to produce high-mobility graphene. Although significant progress has been made in chemical vapor deposition (CVD) and epitaxial growth of graphene, the carrier mobility obtained with these techniques is still significantly lower than what is achieved using exfoliated graphene. We show that the quality of CVD-grown graphene depends critically on the used transfer process, and we report on an advanced transfer technique that allows both reusing the copper substrate of the CVD growth and making devices with mobilities as high as 350,000 cm² V^–1 s^–1, thus rivaling exfoliated graphene.

2D Mater. 2, 030202 (2015)
We review current challenges and perspectives in graphene spintronics, which is one of the most promising directions of innovation, given its room-temperature long-spin lifetimes and the ability of graphene to be easily interfaced with other classes of materials (ferromagnets, magnetic insulators, semiconductors, oxides, etc.), allowing proximity effects to be harvested. The general context of spintronics is first discussed together with open issues and recent advances achieved by the Graphene Spintronics Work Package consortium within the Graphene Flagship project. Based on such progress, which establishes the state of the art, several novel opportunities for spin manipulation such as the generation of pure spin current (through spin Hall effect) and the control of magnetization through the spin torque phenomena appear on the horizon. Practical applications are within reach, but will require the demonstration of wafer-scale graphene device integration, and the realization of functional prototypes employed for determined applications such as magnetic sensors or nano-oscillators. This is a specially commissioned editorial from the Graphene Flagship Work Package on Spintronics. This editorial is part of the 2D materials focus collection on ‘Progress on the science and applications of two dimensional materials,’ published in association with the Graphene Flagship. It provides an overview of key recent advances of the spintronics work package as well as the mid-term objectives of the consortium.

Nano Lett. 15, 4417 (2015)

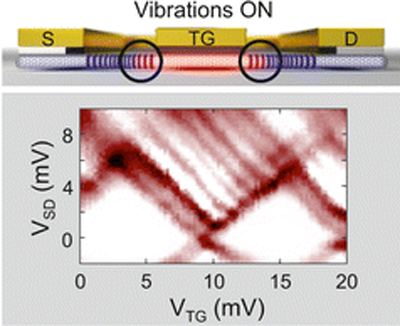

We report transport measurements on a quantum dot in a partly suspended carbon nanotube. Electrostatic tuning allows us to modify and even switch “on” and “off” the coupling to the quantized stretching vibration across several charge states. The magnetic-field dependence indicates that only the two-electron spin-triplet excited state couples to the mechanical motion, indicating mechanical coupling to both the valley degree of freedom and the exchange interaction, in contrast to standard models.

Appl. Phys. Lett. 106, 193501 (2015)

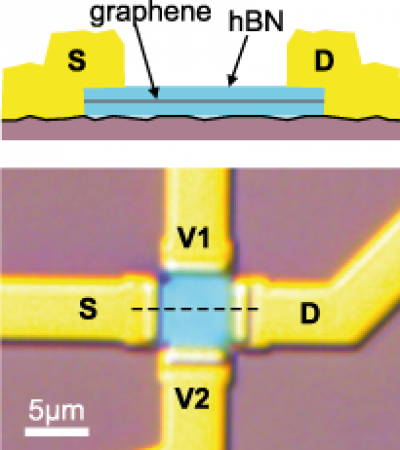

The encapsulation of graphene in hexagonal boron nitride provides graphene on substrate with excellent material quality. Here, we present the fabrication and characterization of Hall sensor elements based on graphene boron nitride heterostructures, where we gain from high mobility and low charge carrier density at room temperature. We show a detailed device characterization including Hall effect measurements under vacuum and ambient conditions. We achieve a current- and voltage-related sensitivity of up to 5700 V/AT and 3 V/VT, respectively, outpacing state-of-the-art silicon and III/V Hall sensor devices. Finally, we extract a magnetic resolution limited by low frequency electric noise of less than 50 nT/ (Hz)^1/2 making our graphene sensors highly interesting for industrial applications.

2D Materials 2, 024001 (2015)

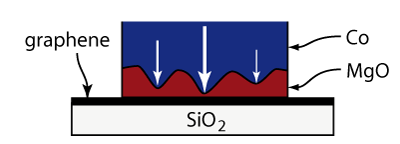

Recently, it has been shown that oxide barriers in graphene-based non-local spin-valve structures can be the bottleneck for spin transport. The barriers may cause spin dephasing during or right after electrical spin injection which limits spin transport parameters such as the spin lifetime of the whole device. An important task is to characterize the quality of the oxide barriers of both spin injection and detection contacts in a fabricated device. To address this issue, we discuss the influence of spatially inhomogeneous oxide barriers and especially conducting pinholes within the barriers on the background signal in non-local measurements of graphene/MgO/Co spin-valve devices. By both simulations and reference measurements on devices with non-ferromagnetic electrodes, we demonstrate that the background signal can be caused by an inhomogeneous current flow through the oxide barriers. As a main result, we demonstrate the existence of charge accumulation besides the actual spin accumulation signal in non-local voltage measurements, which can be explained by a redistribution of charge carriers by a perpendicular magnetic field similar to the classical Hall effect. Furthermore, we present systematic studies of the phase of the low frequency non-local ac voltage signal which is measured in non-local spin measurements when applying ac lock-in techniques. This phase has so far widely been neglected in the analysis of non-local spin transport. We demonstrate that this phase is another hallmark of the homogeneity of the MgO spin injection and detection barriers. We link backgate dependent changes of the phase to the interplay between the capacitance of the oxide barrier and the quantum capacitance of graphene.
